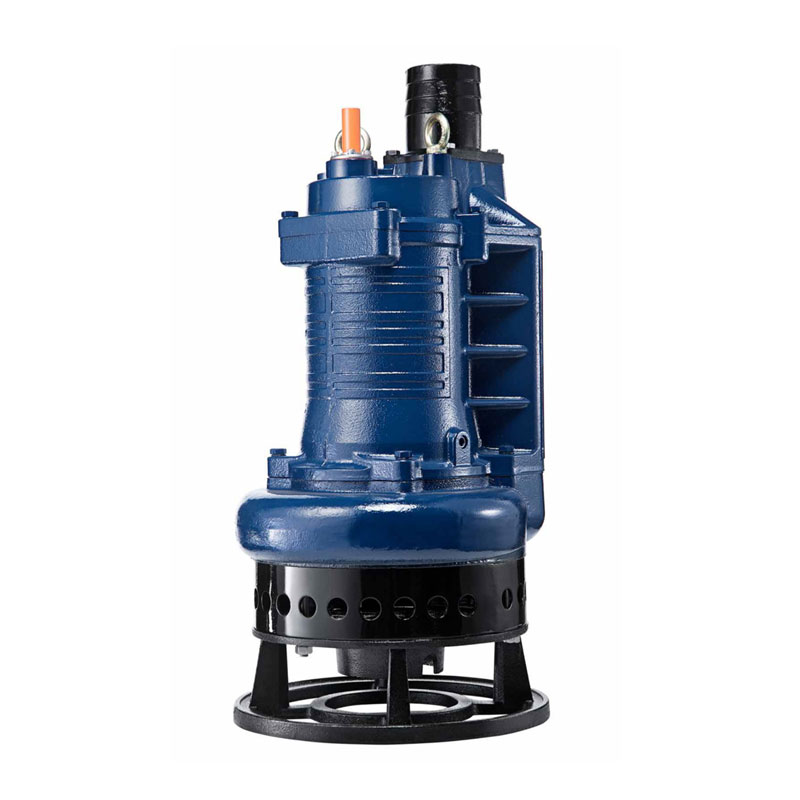

The following is the introduction of high quality Submersible Slurry Pump with Agitator, hoping to help you better understand it. An agitator is provided to assist smooth suction of the pumping fluid. The side -flow, top-discharge keeps the motor cooling even the pump runs continuously. High chrome iron Semi -open impeller enables the pump to maintain its original performance.
• For pumping sewage, waste water (non- aggressive) in industrial and residential installations and drainage applications
• It is ideal pump for transferring or draining slurry used for slurry drilling, draining slurry mixed water and liquids containing sandy mud in civil engineering works or foundation works.
• Flow rate up to 360m /h
• Head up to 32m
• An agitator is provided to assist smooth suction of the pumping fluid
• The side -flow, top- discharge keeps the motor cooling even the pump runs continuously
• High chrome iron Semi -open impeller enables the pump to maintain its original performance
• Liquid temperature up to +35℃
• Ambient temperature up to +40℃
• Max. Immersion depth 25m
• Continuous duty
• Special mechanical seal
• Other voltages or 60Hz frequency
• Longer or shorter cable
• Four- pole induction motor, 50Hz(n=1450rpm)
• Three phase 380V-415V
• Equipped with built- in thermal protector
• Insulation class F
• Protection IP68
| Upper cover | Cast iron |
| Motor case | Cast iron |
| Pump body | Cast iron |
| Strainer | Steel with electro coating |
| Agitator | High chrome alloy |
| Impeller | High chrome alloy |
| Shaft | Stainless steel AISI 304 |
| Mechanical seal | Si C-Si C |
