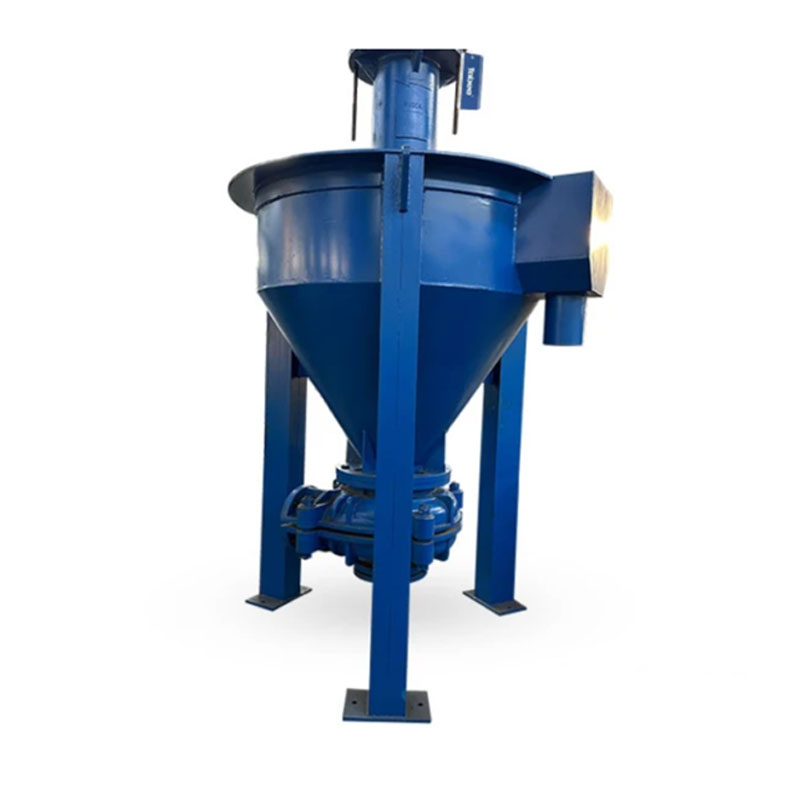

FKVF Vertical Froth Slurry Pump has been designed to increase the pump ability of frothy slurry. The principle of operation is similar to that of hydro cyclone separation. Air is separated from the slurry in a vortex created by the impeller rotation and the tangential inlet to the pump’s conical sump.
Size: 2-8inch
Capacity: 1.2-186L/S
Head: 5-30m
Speed: 500-1800r/min
Max power: 15-110kw
The basic principle of the pump operation is to remove or partially remove the froth before the slurry enters the pumping. Its handling capacity is much higher than that of other types of slurry pump without shaft seal and sealing water. It is a perfect pump for handling frothy pulp.
The structure of FKVF Vertical Froth Slurry Pump head is double casing. All wet parts can be supplied in Ni-hard, high chrome alloy iron and pressure-moulded natural or synthetic rubber. The driver end can be exchanged with tsp pumps. The hopper-tank is fabricated with steel plate. Its inner wall of the tank can be covered with liner according to different medium pumped. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
1. Easy installation & disassembly.
2. Integrated unit for layout flexibility.
3. Smooth operation of the open vortex created in the sump and vertical “wet end” inlet prevents air locking.
4. Cantilever design does not require submerged bearings or shaft seals.
5. Bearing assembly with double protection sealing arrangement to prevent ingress of slurry.
6. Wear parts are available in a variety of different materials.
7. Simplified maintenance.
