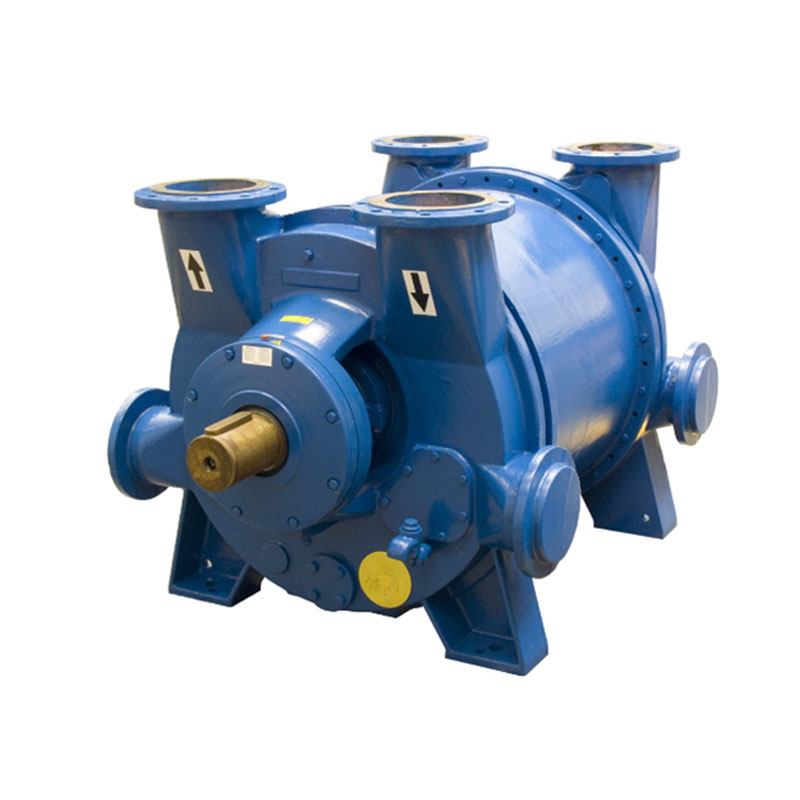

NASH high quality and reliable NASH Vacuum Pump and Compressors have the features and performance necessary for all demanding applications. They are applied specially to work well in all dangerous and rigorous conditions. It gives the possibilities to innovate in Process, Power, Petrochemical, Pulp & Paper, Environmental Protection, Coal Mining, Wastewater Treatment, Solid Waste Management and many other industries.
Liquid ring vacuum pumps and compressors that use a fluid compression in lieu of pistons, vanes or rotating lobes are the best choice in most applications. They provide benefits that are not possible with other alternatives.
• Liquid acts as a piston with no friction & no wear
• Liquid cools the gas providing nearly isothermal compression
• Low operating speeds & low vibration
• Accepts liquid & soft solids carryover
• Simple design & construction
• No metal to metal contact and no internal lubrication
• No valves or gears
• Long life with an exceptionally high degree of reliability
• Easy to maintain
• Tolerant of process upsets
• Liquid condenses vapors increasing capacity
• One moving part - the rotor & shaft assembly
• The rotor is mounted eccentrically in the casing.
• As the rotor turns, the liquid ring is formed due to the centrifugal force.
• The Liquid recedes and then refills each chamber.
• Gas is drawn into the rotor chambers and is then compressed providing a liquid piston, pumping action.
NASH liquid ring Vacuum Pump Capacity ranges from 20 to 23,000 cfm (34 to 40,000 m3/h). Vacuum levels to 29+" HgV (30 mbar abs).
NASH rugged and reliable liquid ring compressors with compression greater than 200 psig (15 bar abs). Low pressure compressors are also available to 30 psig (3 bar abs) and 20,000 cfm (34,000 m3/h).
Furkey continues to provide a number of models from our "classic" workhorse liquid ring vacuum pump lines, including the well known referred CL, 904, SC, and 2BE1 lines, the same vacuum pumps you have depended on for years. No need to replace your whole system, we are here to offer you a genuine replacement which is 100% interchangeable with the original manufacturer.
Furkey has the expertise to design and manufacture vacuum and compressed gas systems to meet your specific process needs. These systems are ready for operation, easy to integrate into process automation, help minimize installation & operating costs, and are designed to meet the most demanding applications.
