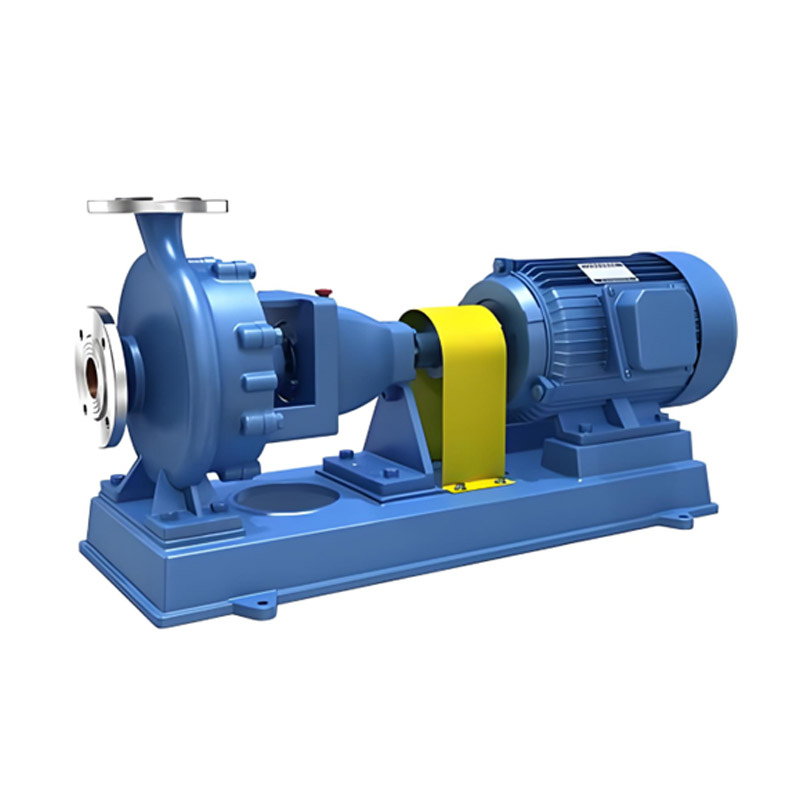

ISO Process Pump FIH Type

Product Overview and Features:

FIH type single-stage suction cantilever force chemical centrifugal pump is designed according to state standards according to national standards of ISO2858 SIO199 / DIS manufacturing of its technical indicators compared with the old products, the efficiency of an average of about 5% NPSH reduces the about 2%, a stable performance, the size of parts to achieve the standardization of energy efficient products, energy saving replacement product is the State Administration of Machinery Industry Ministry, the take of old corrosion resistant pumps and import substitution, improved FIH-A chemical pump reorganization to a more simple form of the composition of the unit (remove the lengthened coupling pump and motor directly), in particular small power unit to reduce floor space and reduce investment in infrastructure and easy maintenance have its important significance.

Main purposes:

The ISO Process Pump FIH Type is suitable for the industrial sector of the chemical petroleum, petrochemical, metallurgy, light industry, printing and dyeing. Pharmaceutical and environmental desalination. Offshore oil. Paper. Food distribution does not contain solid particles of organic or inorganic chemical medium petroleum products and corrosive liquids.

Working conditions and nature:

(a) conveying water substances and a variety of corrosive media (viscosity similar to water)
(b) density range P = 1.0-1.84 * 10 cubic meters kg / m cubic
(c) medium temperature range between -20 s, +160 Reading
(d) the system working pressure ≤ 1.6MPa.: system pressure = inlet pressure + pump closing valve when the pressure of ≤ 1.6MPa
(e) the flow rate of 3.4-460m cubic meters / n lift H3.6-132m special circumstances (high temperature high pressure and special materials) made in advance in order to provide a more reliable product.

Material:

The ISO Process Pump FIH Type is mainly used to transport corrosive medium, the flow passage components (pump cover and impeller) are used the following stainless steel material, Including 303, 304, 316, CD4MCuN, etc... the user for selection of other special materials, please order in advance.
