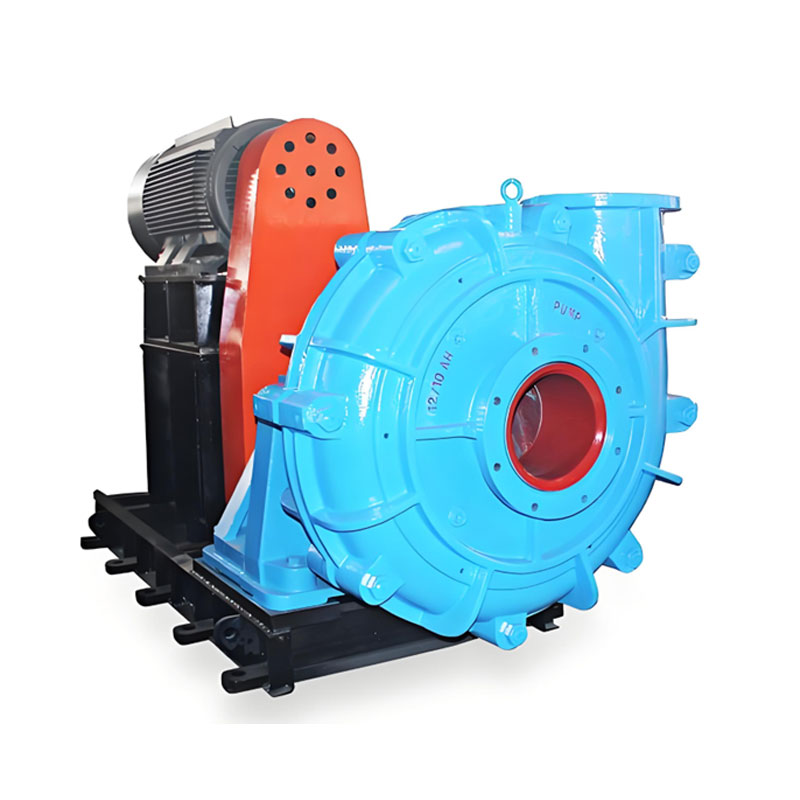

AH Horizontal Slurry Pump

AH Horizontal Slurry Pump is the perfect Warman AH slurry pumps replacement at low cost. These pumps are designed for a wide range of erosive and/or corrosive applications, and are typically used for slurries containing high concentrations of erosive solids or where an extremely heavy duty-slurry pump is required.

Outlet size: 1-18inch
Inlet size: 1.5-20inch
Capacity: 3.6-5400m3/h
Head: 6-125m
Handing solids: 0-130mm

Materials:

Metal: WI05, WI07, WI33, WI49, WI61.
Rubber: R55, S31, S42

Design Features:

• Horizontal, Cantilevered, Centrifugal, Single stage slurry pump design.
• Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
• Casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller - Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
• Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer
• Throatbush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• Shaft seal - Packing seal, Centrifugal seal, Mechanical seal;
• Driving type - Flexible coupling, V-belt with pulleys, Gearbox, VFD,SCR control etc.
• The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
• Easy to install and maintain in on-site application.
